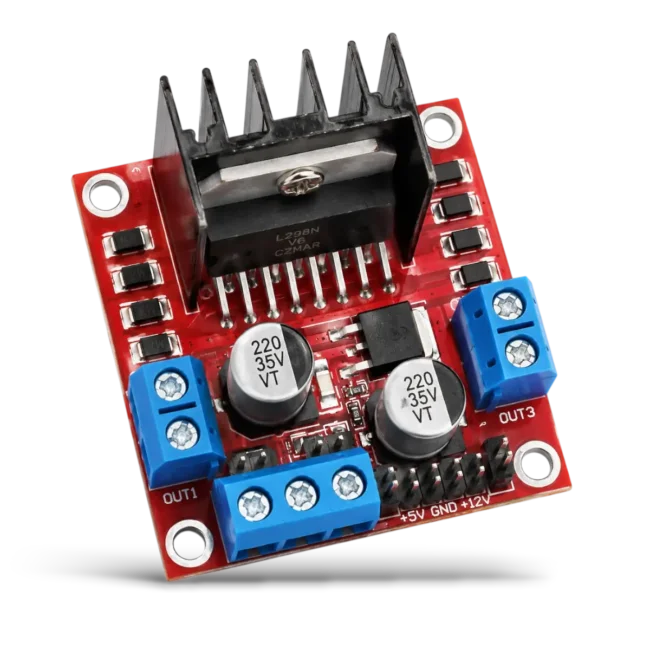

L298N Motor Driver Module – Powerful Dual H-Bridge DC Stepper Controller Board
₦4,999.00 ₦5,500.00
The L298N Motor Driver Module is a reliable, high-performance controller board designed to manage heavy-duty robotic motors. Engineered to drive two independent DC motors or one 2-phase stepper motor, this L298N Motor Driver Module features a massive aluminum heatsink to handle high current demands safely. Complete your next DIY project easily by connecting this versatile L298N Motor Driver Module straight to your microcontrollers.
100 in stock
Report AbuseTake Command with the L298N Motor Driver Module
Building mobile robots or automation projects requires steady, dependable power management. The L298N Motor Driver Module is specifically designed to solve common hobbyist headaches like weak current output, overheating chips, and complex wiring issues. By integrating this heavy-duty L298N Motor Driver Module into your hardware setup, you gain precise speed and direction control over your power-hungry motors without risking damage to your sensitive microcontrollers.
Technical Specifications for Smart Buying Decisions
Review the exact electronic parameters of the L298N Motor Driver Module to ensure it perfectly fits your build requirement:
- Drive Type: Dual high-power H-bridge electronic driver core
- Logical Current: 0mA to 36mA continuous load range
- Drive Current: 2A per bridge, or up to 3A total maximum power peak
- Maximum Power Output: 25 Watts total continuous operation threshold
- Storage Temperature: Safe handling from -20 degrees up to 135 degrees Celsius
Why Choose the L298N Motor Driver Module
When working on DIY builds, you need components that deliver consistent performance under load. The L298N Motor Driver Module stands out because it combines robust power delivery with built-in electronic protection features. This adaptable L298N Motor Driver Module includes high-capacity filter capacitors and a freewheeling protection diode system, making the L298N Motor Driver Module highly resilient against sudden voltage spikes and motor feedback.
How to Wire Your L298N Motor Driver Module

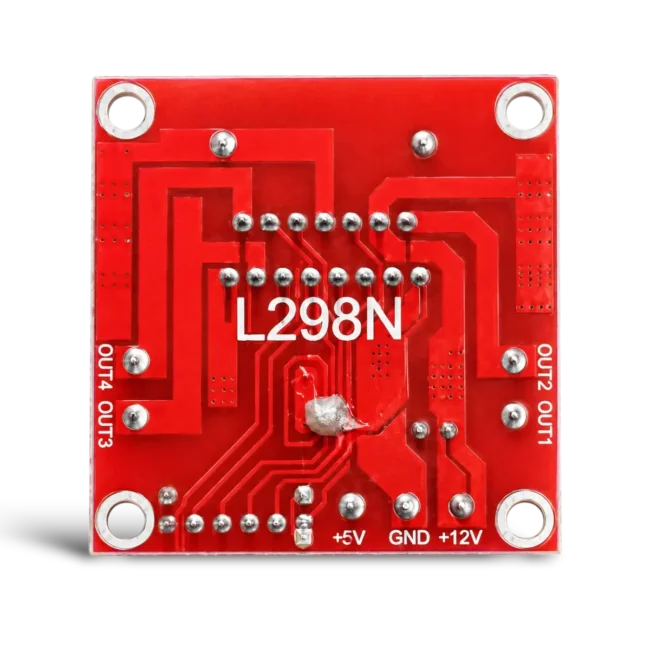

Setting up your new L298N Motor Driver Module is direct and intuitive. First, connect your external power supply to the clearly marked +12V and ground terminals on the main blue block. Next, attach your two drive motors to the OUT1/OUT2 and OUT3/OUT4 terminal screws located on the sides of the L298N Motor Driver Module. Finally, run your control signal wires from your logic board to the digital input pins to start programming your L298N Motor Driver Module.
| Weight | 0.03 kg |
|---|---|
| Dimensions | 4.3 × 4.3 × 2.7 cm |
| Color | Red |
| Driver Chip | L298N Dual H-Bridge Power IC |
| Motor Compatibility | Dual Channel DC Motors, Single 2-Phase Stepper Motor |
| Logic Voltage | 5V |
| Drive Voltage | 5V – 35V |
